LIGHTING PARAMETERS燈具參數
產品型號(PRODUCT MODEL)：CW6075W15-NB40
名稱(NAME)：￠75洗墻燈
功率(W) (POWER)：15w

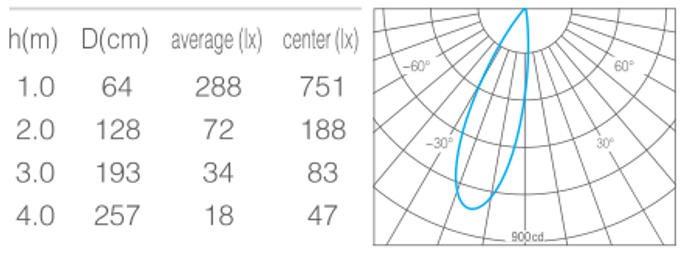

光束角(BEAM)：偏光洗墻
色溫(K) (COLORTEMP)：4000K
顯色指數(Ra) (COLORRENDERING)：RA90
光通量(M) (LUMINOUSFLUX)：692lm
顏色(COLOR)：啞黑+白色面板
使用壽命(SERVICELIFE)：40000h
防護等級(INGRESS PROTECTION)：IP20
安裝方式(INSTALLATION)：嵌入式
控制方式(CONTROLREQUIREMENT)：不可調光
配件(附加) (ACCESSORIES)：
光源(LAMPS)： |
 |
1. Exact dimensions to be verified on site by contractor;承包商需在工地復核所有需要的正確尺寸；
2. Contractor to submit shop drawings / samples to lighting consultant forvrfications and approval;承包商需提供施工圖紙/燈具樣板給燈光顧問審核；
3. Clearance around light fting to be alowed for angular adjustment;保留足夠空間以便燈具可作調節角度；
4. Remote transformer to be located on false ceiling by Electrical Engineer;變壓器由機電工程師安裝在假天花頂之內；
5. The lamps and lanterns is only for parameters, such as changes in the scene of various factors, should be negotiated with the lighting consultant；上述燈 具參數僅供，如因現場各種因素變動，需與燈光顧問協商；
